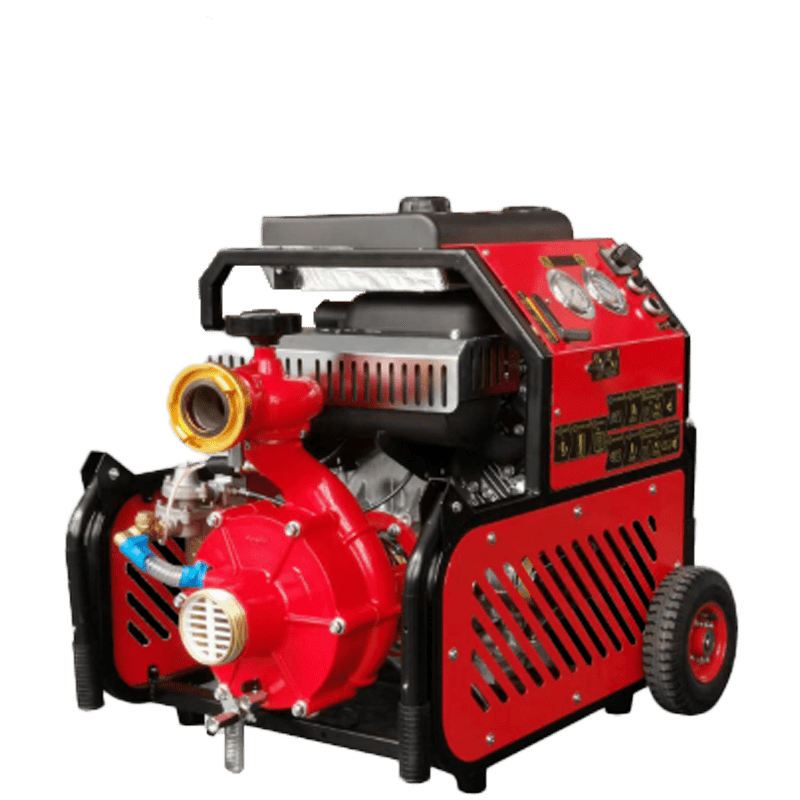

Pompa antincendio portatile alimentata a benzina

1. Engine: Four-stroke, air-cooled gasoline engine, 6134 2. Output Power (Maximum): 33.8 KW (46 Ps) 3. Water Pump Performance (3 meters): Flow rate of 880 L/min at 1.0 MPa pressure Flow rate of 1100 L/min at 0.85 MPa pressure Flow rate of 1500 L/min at 0.5 MPa pressure 4. Overall Weight: 99.8 kg 5. Dimensions: 745 × 738 × 705 (mm) 6. Number of Cylinders: Twin-cylinder 7. Bore × Stroke: 88 × 86.5 (mm) 8. Fuel Type: 92 octane gasoline or higher 9. Fuel Tank Capacity: 12 L 10. Fuel System: Solenoid valve - carburetor - manual choke 11. Lubrication System: Forced lubrication 12. Engine Oil Capacity: 2.3 L 13. Starting Method: Electric start (manual start option available) 14. Ignition method: Transistor electronic ignition 15. Fuel consumption: 11 L/H 16. Single-stage centrifugal pump 17. Suction port diameter: φ80mm 18. Discharge port diameter: φ65mm 19. Number of discharge ports: 1 20. Discharge valve type: Ball valve type 21. Priming mode: Oil-free rotary vane all-copper vacuum pump 22. Priming time (<3 meters): ≤9.66S 23. Maximum suction depth: 9m 24. Maximum head: 145m 25. Rated flow rate: 1020 L/min 26. Rated pressure: 0.85 Mpa 27. Maximum flow rate: 2000 L/min Main configuration (Electric start, 180-degree rotatable discharge valve, rotary vane oil-free all-copper vacuum pump, original imported gasoline engine, high flow rate, medium head, single discharge port, oil-free carbon fiber vanes, automatic shutdown protection device)

Focusing on the “Last Mile”: Establishing frontline water supply points in narrow neighborhoods, rural areas, and forest fire sites where fire trucks cannot reach. Serving as a “Water Relay Station”: Facilitating water transfer between pumps in long-distance water supply systems. Functioning as an “Emergency Backup Pump”: Providing communities and factories with emergency firefighting water sources for preparedness.

I. Three Core Advantages Mobile and Flexible: Portable and quick to deploy, enabling rapid access to narrow alleys, rugged terrain, and other areas inaccessible to fire trucks. Self-Priming Water Suction: Fast startup with strong self-priming capability, allowing swift water intake from natural sources like rivers and ponds. Rugged and Durable: Simple construction, insensitive to impurities, low failure rate, and minimal maintenance costs.
